Specifications

Cam-action door closers with slide channel for fire doors in accordance with EN1154, sizes 2-6. DIN approved for both left and right doors. Adjustable closing force, closing speed and latching action. Accessibility according to DIN 18040, easy door opening according to DIN SPEC 1104.


Mounting methods

A Hinge-side standard installation – T6


B Counter-hinge-side head installation – T6


C Counter-hinge-side door leaf installation – T6G


D Hinge-side head installation – T6G

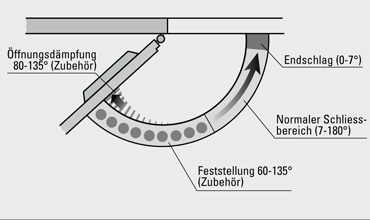

Closing procedure




Models

Art.Nr.

Model

Description

3.60.x

T6 L

For hinge-side standard installation or counterhinge- side head installation, size 2 – 5

3.61.x

T6

For hinge-side standard installation or counterhinge- side head installation, size 4 – 6

3.62.x

T6 GL

For counter-hinge-side standard installation or hinge-side head installation, size 2 – 5

3.63.x

T6 G

For counter-hinge-side standard installation or hinge-side head installation, size 4 – 6

All TGs are available with eighter a standard or short rail

4.02.x

T6 GSR

Closing sequence regulator for double leaf doors (optional fire control/EMF)

4.12.x

T6 EMF

With electromechanical locking device (connection to the fire protection system)

3.63.x

T6 Flight

Free-wheel door closer with magnetic clamp (connection to the fire protection system)







Accessories

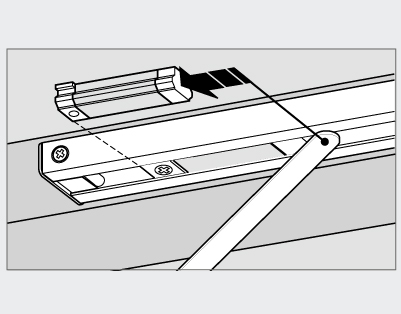

Locking device

Art.Nr. 3.21.0

Locks the door at any angle, setting range 60-135 °, can be combined with opening restrictor

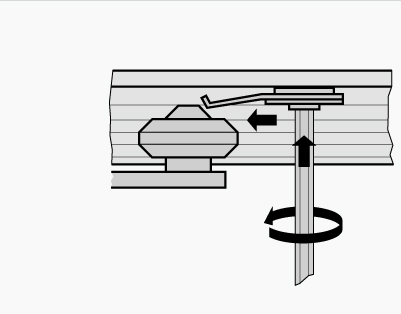

Opening restrictor & delimiter

Art.Nr. 3.27.0

slows down and stops the door at the desired angle, setting range 80-120 °, can be combined with locking device

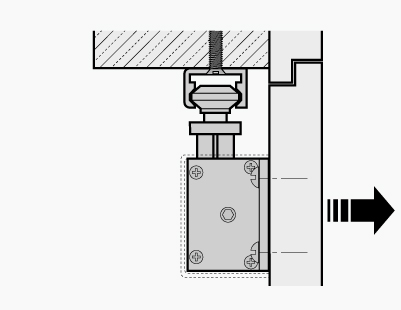

Special slide rail for a lintel installation

Art.Nr. 3.31.1

allows the mounting of the slide rail from the bottom of the door frame

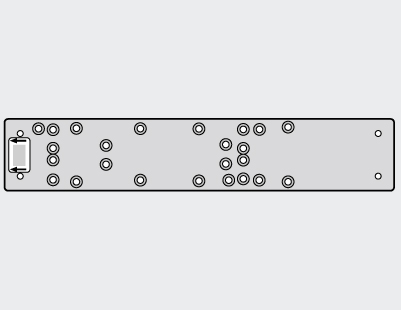

Universal mounting plate

Art.Nr. 3.39.x

Installation of the T6 on existing holes of all common doors closer makes

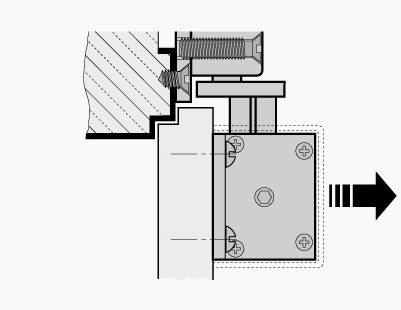

Backing plate for slide rail

Art.Nr. 3.40.x

For installations on narrow or recessed frames
